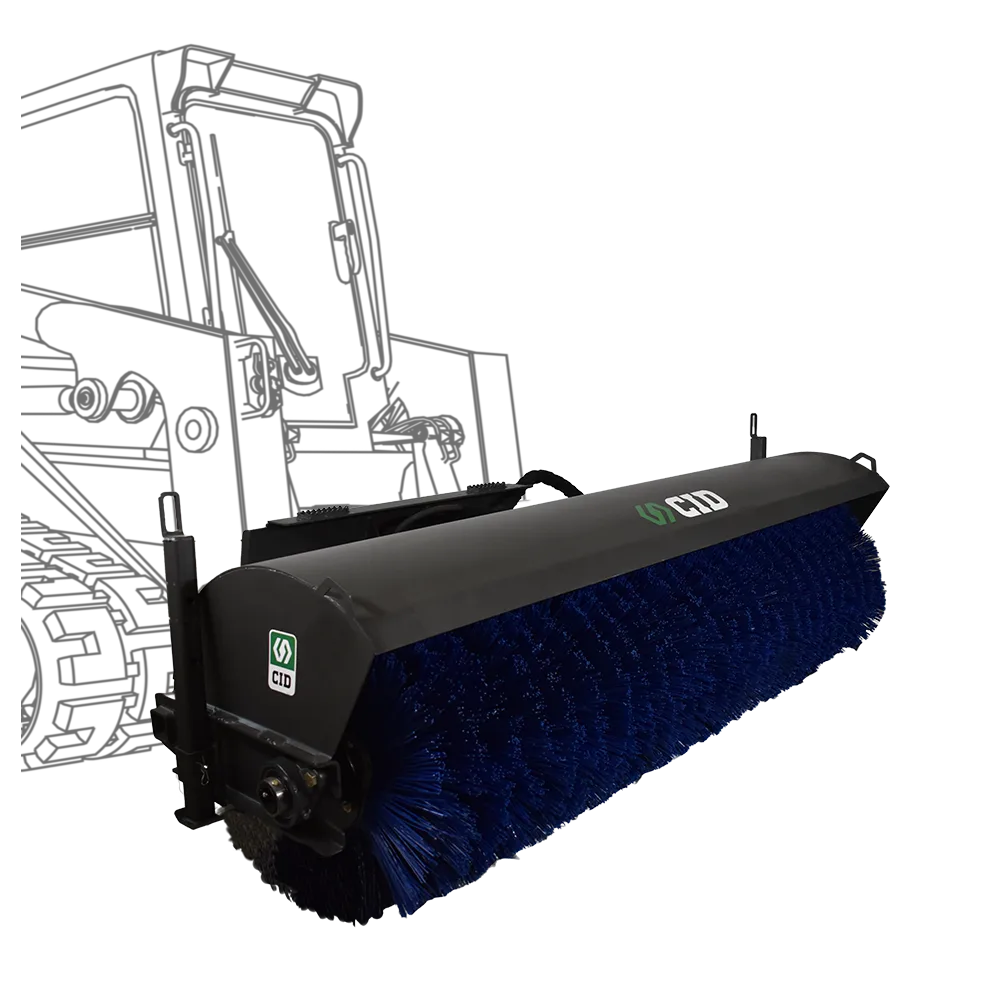

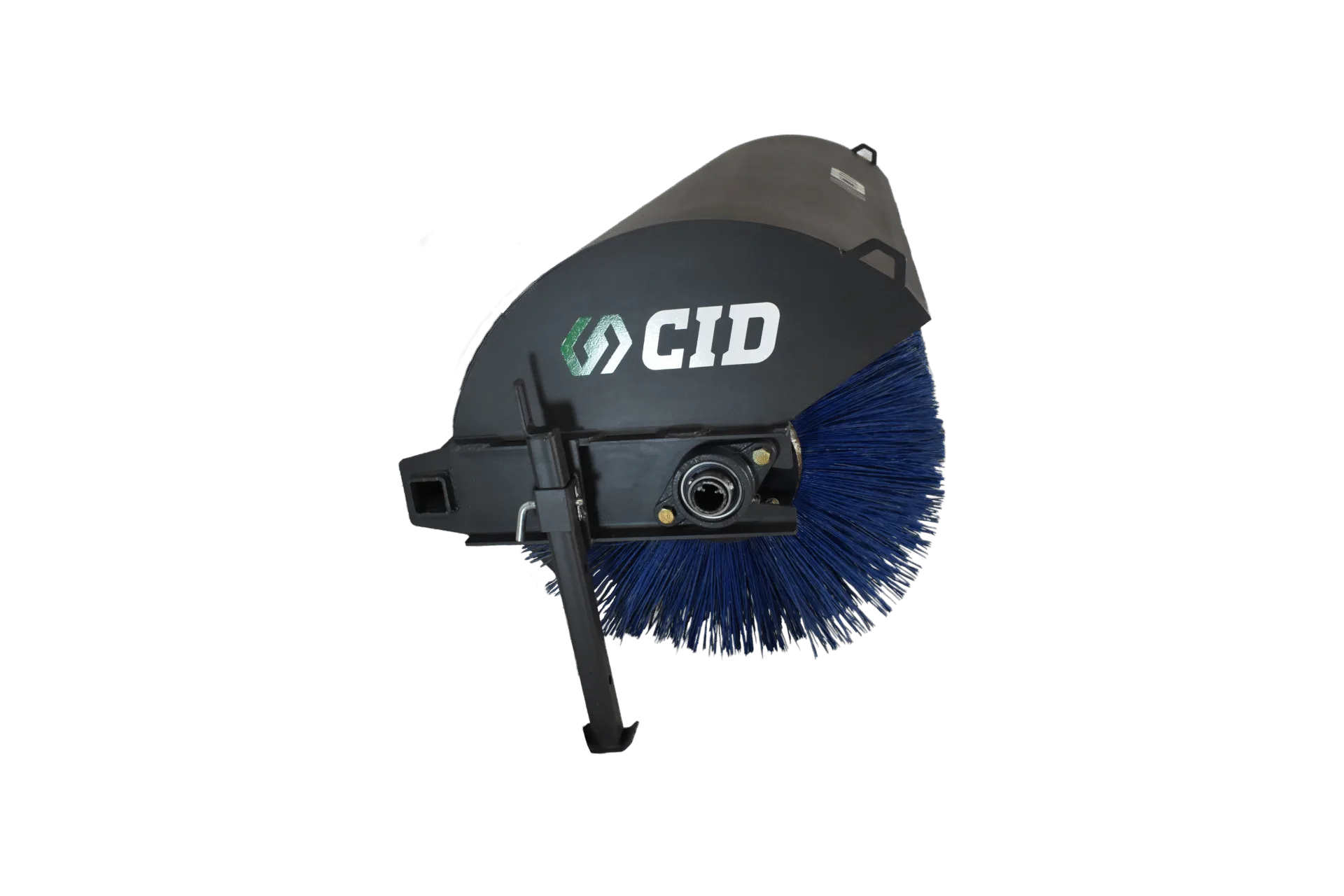

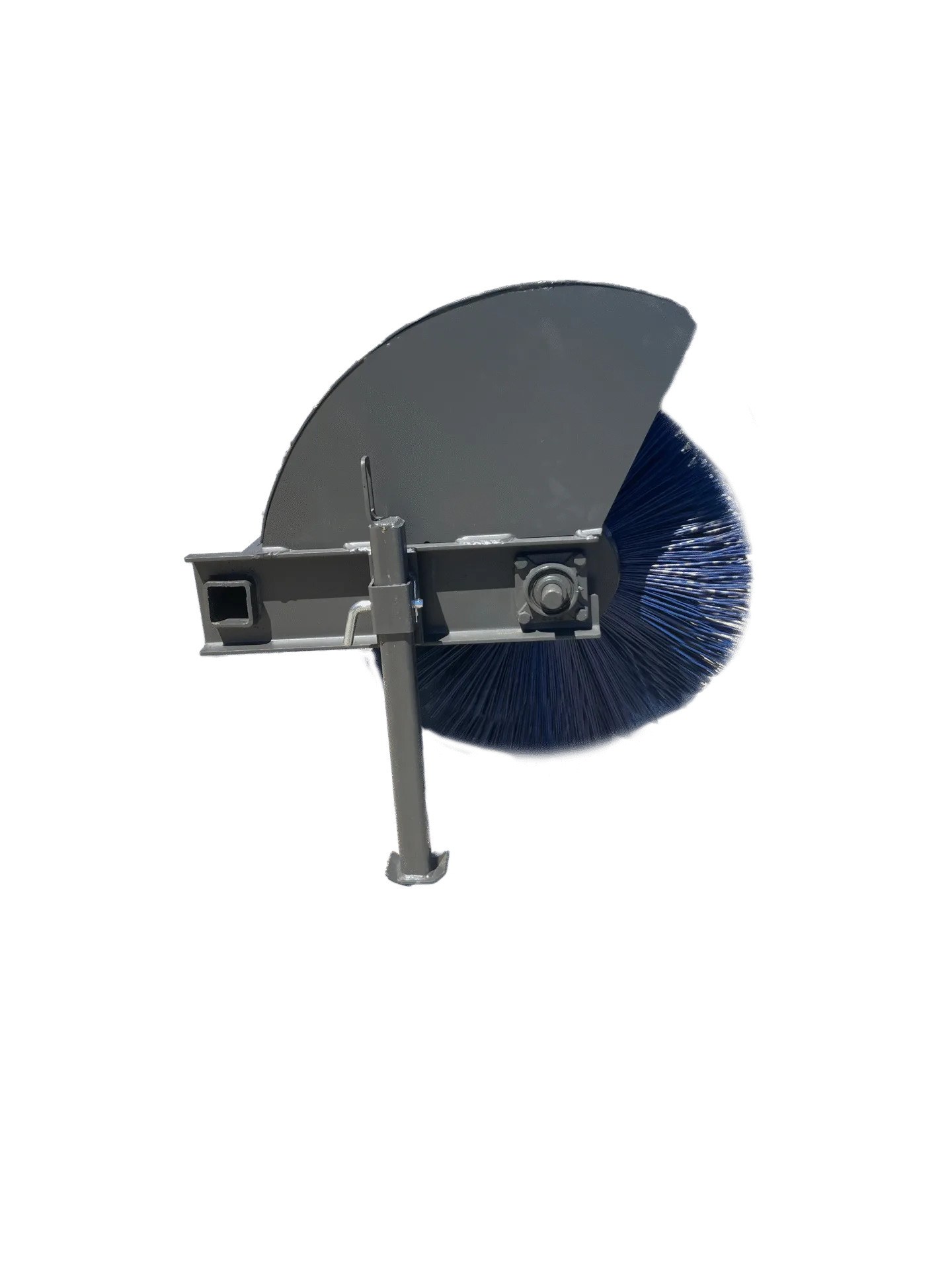

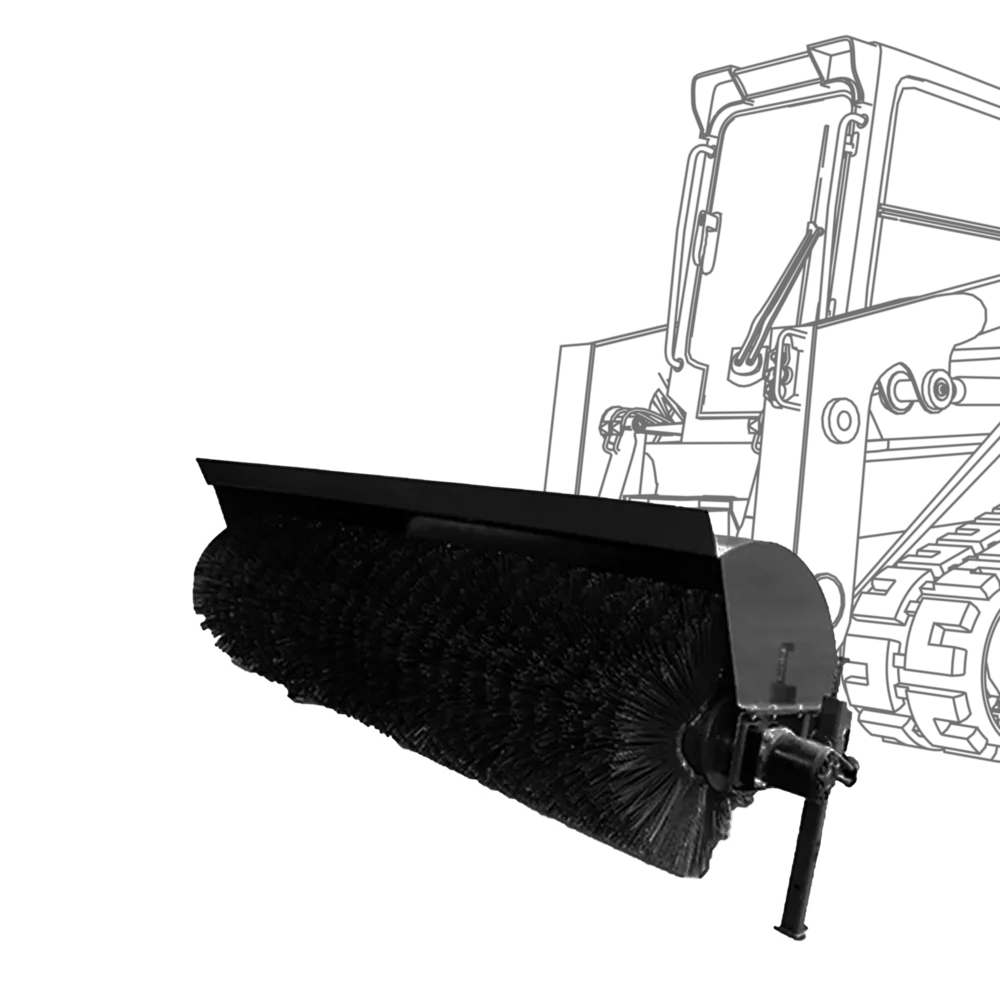

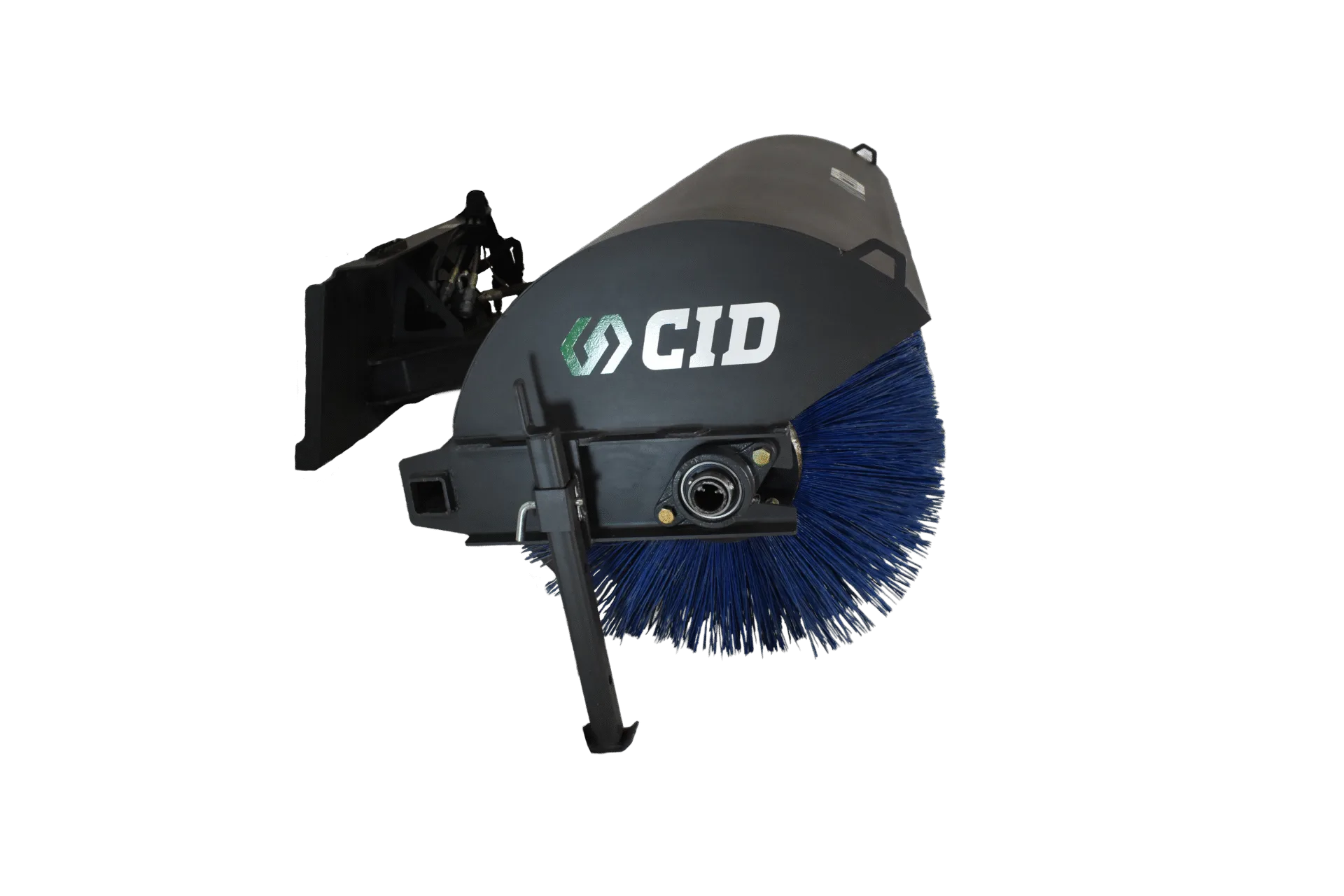

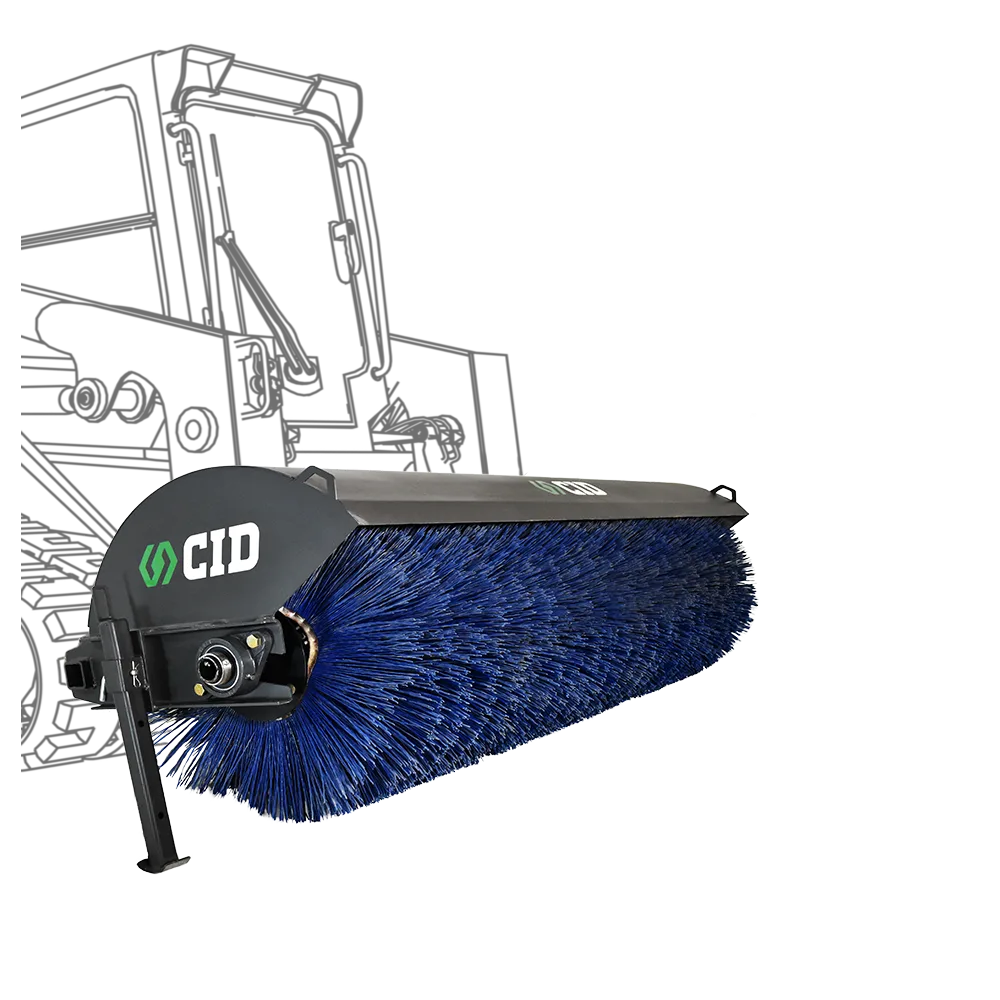

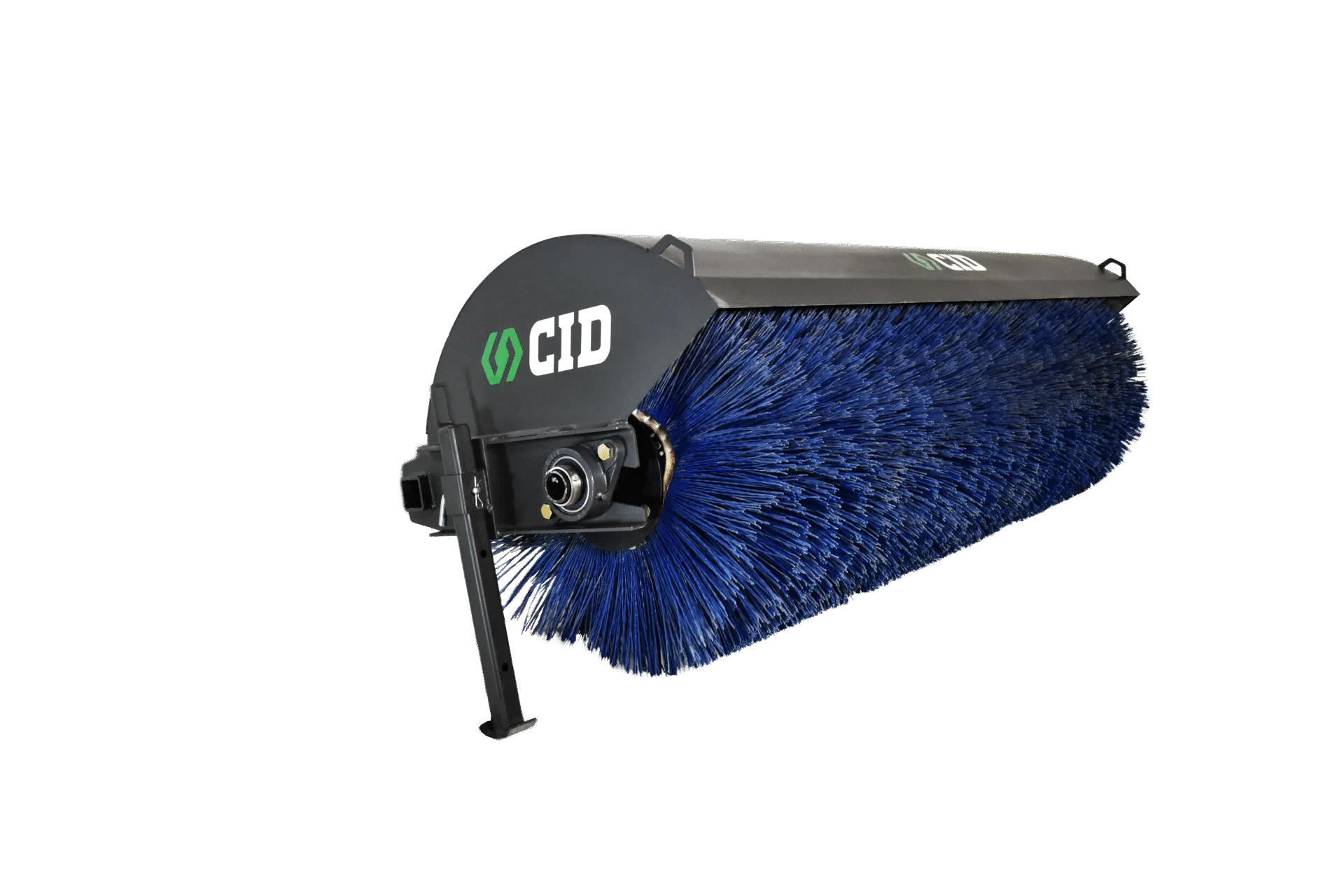

X-TREME HYDRAULIC ANGLE BROOM – 84”
Model: HAB84
Product Family: Hydraulic Angle Brooms
Description: Hydraulic Angle, 84”
Land every bid and clean every road with our X-treme Hydraulic Angle Broom! Designed for high performance and durability, it’s the efficient, effective solution for sweeping away dirt, light snow, and debris from job sites, parking lots, or roadways.
Our redesigned hood keeps debris away from your machine, and the new slide-on bristle system makes replacing wafers faster and easier than ever. Powered by a reversible high-torque motor, this broom delivers exceptional sweeping performance and reliability.
FEATURES
-
Hydraulic Angle Control – Angle the broom left or right from the cab for quick directional changes.
-
Slide-On Bristle System – Makes replacing bristles simple and efficient.
-
Enhanced Hood Design – Keeps debris away from the operator and machine.
-
High Bristle Density – more bristles for improved sweeping performance.
-
Multiple Core & Wafer Options – Choose 8″ core with 26″ bristles or 10″ core with 32″ bristles (optional).
-
Flexible Compatibility – Universal, 8-pin, or 14-pin wiring harness options available.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Family | Hydraulic Angle Brooms |
| Product | HAB84 |
| Description | Hydraulic Angle, 84” |
| Notes | Optional 32″ wafers with 10″ core |
| Cylinder Size | 2″ x 6″ |
| Wiring Harness Options | Universal, 8 Pin, or 14 Pin |
| Wafer Material | Poly, Wire, or Mixed (available in red or blue) |
| Angle Adjustment | Hydraulic Left or Right |
| Flow Requirement | 10–25 GPM |
| Standard Bristle Core | 8″ core with 26″ bristles |
| Optional Bristle Core | 10″ core with 32″ bristles |
| Weight (lbs) | 1,029 |
| Bristle Count | 50 |
