CID Severe Duty Root Grapple 84″

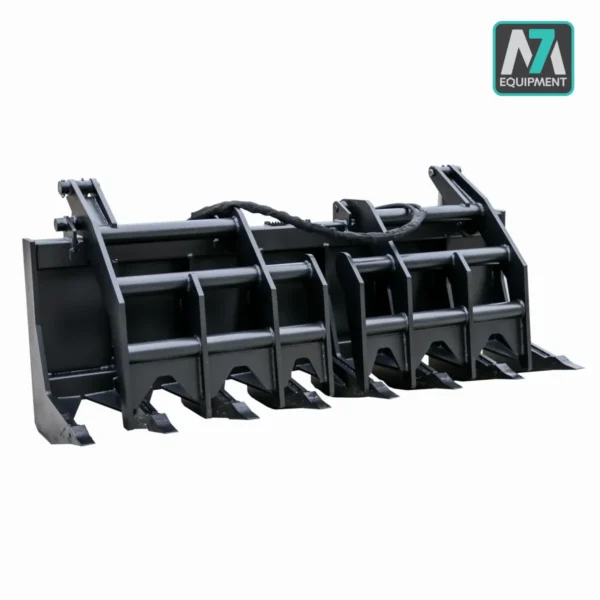

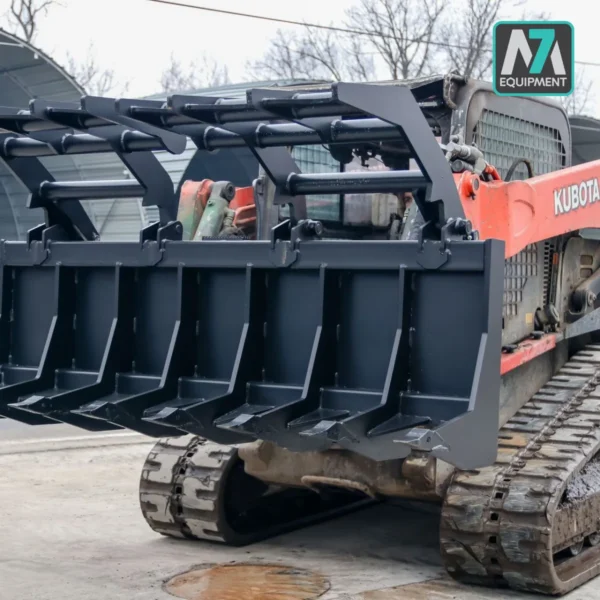

CID 84″ Severe Duty Root Grapple (SVRG84-S)

For Machines 80 HP and Above

The CID Severe Duty Root Grapple is engineered for high-horsepower machines that demand maximum strength, durability, and material-handling capability. Built for 80+ HP skid steers, this grapple outperforms standard and heavy-duty grapples with oversized components, reinforced construction, and industry-leading hydraulic protection.

Key Features

• 84″ Severe Duty Root Grapple – Designed for high-capacity material handling.

• 5/8″ Continuous Bottom Tines – Built from heavy steel for unmatched ground engagement and strength.

• 3/4″ Thick Top Tines – Aggressive design for gripping and tearing through roots, debris, and brush.

• Oversized Pins & Bushings – Increases longevity under heavy workloads.

• 2-3/4″ Bore x 8″ Stroke Cylinders – Provides powerful clamping force.

• 41″ Maximum Opening – Handles large logs, root balls, brush piles, and debris with ease.

• Enclosed Cylinder & Rod Protection – Includes cylinder covers, rod guards, and protected hoses using American-made hydraulics.

• 4″ Square Tube Frame – Heavy-duty backbone for extreme durability.

• Diamond-Plated Cylinder Covers – Extra protection with a rugged appearance.

• Recommended for 80 HP & Above Machines – Built to handle high hydraulic flow and heavy loads.

Specifications

• Product Family: Severe Duty Root Grapple

• Model: SVRG84-S

• Mount: SSL (Skid Steer Universal Quick Attach)

• Working Width: 84″

• Tine Thickness: 1/2″ bottom tines, 3/4″ top tines

• Weight: 1,144 lbs

• Hydraulics: Protected hoses & cylinders, U.S.-made components
