UtiliTough 1000 Hydraulic Breaker Post Driver
The UtiliTough 1000 Hydraulic Breaker Post Driver is a powerful and versatile post driver designed for carriers weighing between 4.5 and 8.8 tons (9,000–17,600 lbs). Engineered for heavy-duty applications, this breaker delivers high impact energy and reliable performance, making it ideal for a wide range of construction and demolition projects.
Included Components
-
Two chisel tools
-
One hydraulic hose set (0.75″ x 100″)
-
One gas charging kit
-
One repair tool box
-
3-year warranty (excludes wear parts)
Specifications
-
Impact Energy Class: 1,000 ft-lb
-
Operating Weight: Approximately 1,124 lbs (may vary by mount style)
-
Blow Rate: 490–1,100 bpm (blows per minute)
-
Required Oil Flow: 10–23.7 GPM
-
Operating Pressure: 1,991–2,418 PSI
- Second Relief Pressure: 2,500 PSI
-
Tool Diameter: 3.14 inches
- Accumulator Gas Pressure: 570-710 PSI
-
Suitable Carrier Weight: 4.5–8.8 tons (9,000–17,600 lbs)
Important Notes
-
Chisel Paste Required: Use of chisel paste is mandatory. Using high-temperature grease as a substitute will cause damage to breaker components.
-

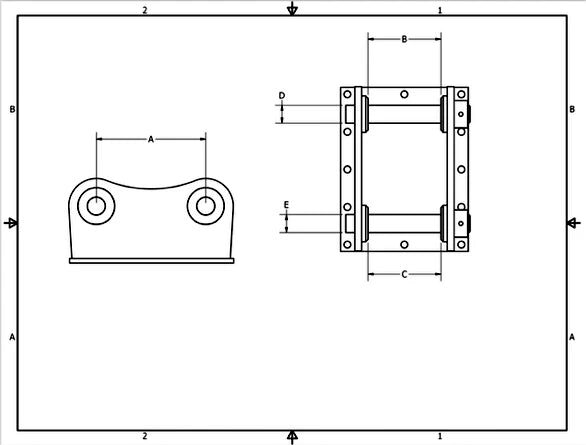

Weight Variations: Operating weight may differ depending on the selected mount style.
-
Specifications & Pricing: Subject to change without notice.
Product Overview
The UtiliTough Hydraulic Concrete Breaker is designed to connect your specified mini excavator and is built for heavy industrial work such as breaking concrete slabs, cement, stone, and other materials. These series breakers reduce noise, prevent internal vibration, and have a more expansive working space. Each breaker features a long chisel point, a two-step stroke and idle blow prevention system, and a large tool pin. The breaker includes two heat-treated Moil Point tools, Hydraulic Hoses with Flat-Faced Couplers, gas charging kit, and a repair toolbox. This powerful breaker is made for the most demanding jobs and is made to last with less maintenance.
