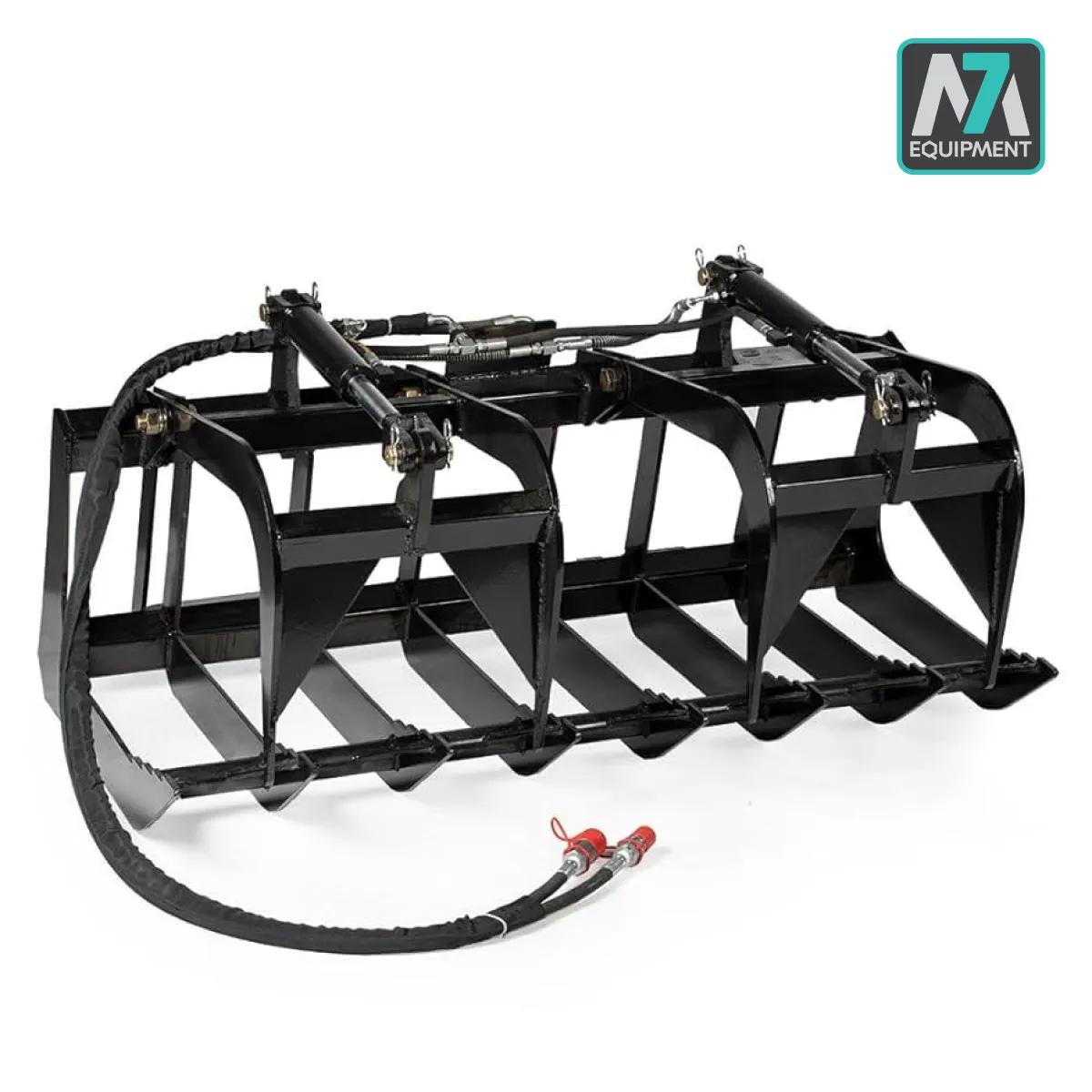

ECONOMY ROOT GRAPPLE – 60”
Product Family: Economy Root Grapple
Product: ERG60
Description: ECONOMY ROOT GRAPPLE, 60”
The Economy Root Grapple (60”) is engineered for light to moderate-duty work, making it ideal for compact tractors and skid steers up to 45 HP. Built with the same rugged features as larger models but in a lighter package, it’s perfect for handling brush, roots, logs, and debris while maintaining excellent visibility and control.
FEATURES
-
Dual Tie-Rod Cylinders – Equipped with twin 2″ bore x 8″ stroke cylinders for balanced and powerful clamping.
-
Heavy-Duty Frame – 3″ x 3″ x 1/4″ square tubing frame provides strength without excessive weight.
-
Optimal Tine Spacing – 3/8″ thick tines spaced 9″ apart allow dirt to fall through while retaining material.
-
Protected Hydraulics – Includes cylinder covers to shield against dirt, limbs, and debris.
-
Compact Power – Designed for machines 45 HP and under for dependable, efficient performance.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Cylinder Size | (2) 2″ Bore x 8″ Stroke Tie Rod Cylinders |
| Tine Thickness | 3/8″ |
| Tine Spacing | 9″ |
| Frame Tubing | 3″ x 3″ x 1/4″ |
| Horsepower Rating | For machines 45 HP and under |
| Working Width | 60″ |
| Covers | Cylinder Covers Standard |
